Resource Schemas

This section contains the technical reference for defining resource schemas. Before you embark on defining these schemas, we recommend you know exactly which data you need for your resource management tasks in your Helmholtz Cloud Agent and familiarize yourself with available Helmholtz ID attributes to filter on for policies. Once done, you can upload these schemas to Plony from where they are then synced to Helmholtz Cloud.

If you’re stuck at any point, reach out to us at support@hifis.net or join our community chat.

ResourceType¶

The ResourceType schema is the recommended starting point when defining schemas. It serves two main purposes:

It defines the data structure and format of the payload you expect to receive in your Helmholtz Cloud Agent.
It defines the layout and validation of the form presented to users when managing the resource on Helmholtz Cloud.

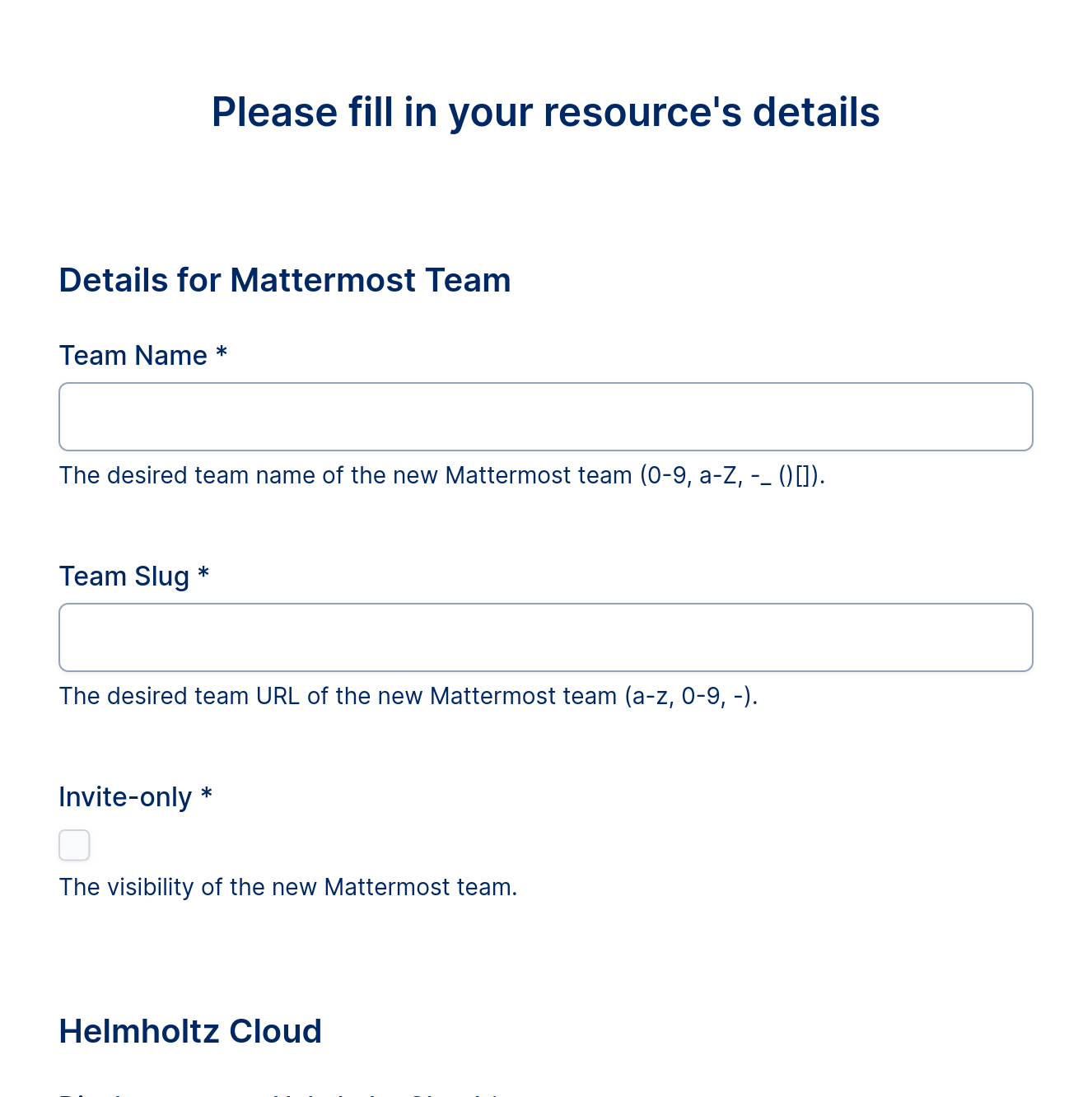

A screenshot showing the resource-specific section of the resource form on Helmholtz Cloud. — The ResourceType describes the structure and validation of your resource form on Helmholtz Cloud and your Helmholtz Cloud Agent payload.

Attributes¶

`id`¶

A random UUID4 for your schema. When making changes to the schema, please do not change it when updating your schema. You can generate a new UUID4 with python -c 'from uuid import uuid4; print(uuid4());'.

`name`¶

A display name for your ResourceType this is going to be displayed on the resource’s profile on Helmholtz Cloud.

`description`¶

A description for your ResourceType this is going to be displayed on the resource’s profile on Helmholtz Cloud.

`json_schema`¶

The json_schema attribute contains a JSON Schema definition of your payload. Use the schema to catch errors as early as possible in the process to prevent users from making invalid requests. You may define properties at the first level (no nesting) with the types string, integer and boolean as well as associated format validations. Check the JSON Schema documentation for more information. Helmholtz Cloud supports the 2020-12 draft version of the specification. $ref, $recursiveRef and $dynamicRef are not supported. A property’s description serves as the form field’s description. The field’s label is defined in the ui_schema. You may define default values for pre-filling form fields. If you define default values in a Policy, they take precedence over the values defined by the ResourceType.

`ui_schema`¶

More data types and form controls

If you require special layout options, data types or form controls (e.g. sliders), please get in touch with us.

The ui_schema attribute contains a JSONForms layout based on your json_schema. Here, you can set the field’s order, set labels and reference the schema’s properties. At this time only VerticalLayout and Control are supported.

Annotated Example¶

The example below describes a team resource on the chat service Mattermost. Click the icons in the code to reveal the annotations.

ResourceType.json
{
  "id": "bcfff2de-ed0b-435d-b650-02014e358b7b",
  "name": "Mattermost Team",
  "description": "A team is a digital workspace where you and your teammates can collaborate in Mattermost.",
  "json_schema": {
      "$schema": "https://json-schema.org/draft/2020-12/schema",
      "title": "MmTeamResourceSpecV1", // (1)!
      "description": "Specification of a Mattermost Team Version 1", // (2)!
      "type": "object",
      "properties": { // (3)!
          "team_name": {
              "description": "The desired team name of the new Mattermost team (0-9, a-Z, -_ ()[]).",
              "type": "string",
              "minLength": 2,
              "maxLength": 64,
              "pattern": "^[a-zA-Z][a-zA-Z0-9-_ /\\(\\)\\[\\]]+$" // (4)!
          },
          "team_slug": {
              "description": "The desired team URL of the new Mattermost team (a-z, 0-9, -).",
              "type": "string",
              "minLength": 2,
              "maxLength": 64,
              "pattern": "^[a-z][a-z0-9-]+$"
          },
          "invite_only": {
              "description": "The visibility of the new Mattermost team.",
              "type": "boolean",
              "default": false
          }
      },
      "required": ["team_name", "team_slug", "invite_only"] // (5)!
  },
  "ui_schema": {
      "type": "VerticalLayout",
      "elements": [
          {
              "type": "Control",
              "scope": "#/properties/team_name", // (6)!
              "label": "Team Name"
          },
          {
              "type": "Control",
              "scope": "#/properties/team_slug",
              "label": "Team Slug"
          },
          {
              "type": "Control",
              "scope": "#/properties/invite_only",
              "label": "Invite-only"
          }
      ]
  }
}

This is passed to your Helmholtz Cloud Agent when making resource requests.
This is not used at this time, set it to something descriptive.
Be sure to only define properties at the to level (no nesting).
This is also validated before the user can submit their request. This way you can reduce invalid requests.
Be sure to list all required properties here!
Note how this references the property path from json_schema.

Based on this, a payload arriving at your Helmholtz Cloud Agent could look like this:

CloudAgent.json
{
    "type": "MmTeamResourceSpecV1",
    "target_entity": {
        "group_urn_target": null, // (1)!
        "user_id_target": "034cf70b-f2e6-4899-9eb3-8c6fa0d0cc90" // (2)!
    },
    "specification": { // (3)!
        "team_name": "Test Team",
        "team_slug": "test-team",
        "invite_only": true
    }
}

If this was a group resource, this would contain the group’s URN.
This is a personal resource. If this was a group resource, this would be null.
This structure is specified by you in the ResourceType.

Quota¶

A Quota allows you to limit the amount of resources allocated. Every resource requested on Helmholtz Cloud is linked to a Quota. Whenever a resource is requested, Helmholtz Cloud checks whether the limits imposed by the Quota would be exceeded by the request. A Quota allows you to restrict the overall sum of integer properties of resources allocated to that Quota. Note this is not a per-resource limit, but a limit on all resources linked to that Quota. If you want to introduce per-resource limits, use the ResourceType for per-request limits and Policy for limits for certain groups of users.

Attributes¶

`id`¶

A random UUID4 for your schema. You can generate a new UUID4 with python -c 'from uuid import uuid4; print(uuid4());'.

`service_id`¶

The ID of your service in the catalog, You can find it on Plony or in the URL when opening your service’s profile on Helmholtz Cloud.

`resource_type_id`¶

The ID of the ResourceType.

`name`¶

The Quota’s display name. It is shown to users if they have multiple Policies (linking to Quotas) to choose from.

`quota`¶

List of overall limits on integer properties. Set property to the name and total to the maximum limit you want to permit. You may define an empty list to create a quota with no limits. You may only reference a property once in this list and supply positive values. If you limit a value using a quota the ResourceType’s json_schema must define a minimum > 0 or an exclusiveMinimum >= 0 validation to prevent users from submitting negative values and thus breaking the Quota.

Annotated Example¶

The example below describes a quota on a virtual machine resource. Click the icons in the code to reveal the annotations.

Quota.json
{
    "id": "e2df7b90-6459-4740-bb50-7296895d3ddf",
    "service_id": "46f97142-9a84-4fc2-ba40-a8d8dc468a12",
    "resource_type_id": "94e1df23-77a1-4909-922e-56cbb3e1cf4b",
    "name": "Quota for Helmholtz Scientists",
    "quota": [
        {
            "property": "ram", // (1)!
            "total": 6400 // (2)!
        },
        {
            "property": "storage",
            "total": 12800
        }
    ]
}

Sum the overall amount of the property ram allocated to this Quota.
Set the overall limit of that property to 6400.

Policy¶

Use the Policy to control who can manage resources for whom on a Quota. Every Policy is linked to a single Quota. Multiple Policies may link to the same Quota. You specify who can act using that policy based on a user’s Helmholtz ID attributes in the actor_requirements attribute. Resources can belong to either individuals (personal resources) or groups. In addition, a policy can further restrict the payload’s contents using the json_schema attribute. The properties on that JSON Schema must be a subset of the ResourceType of the linked Quota. When managing resources, a request must pass both the ResourceType’s and the Policy’s JSON Schema. Given the Policy’s central role for access control, take care when designing its restrictions and interactions with the other schemas.

Attributes¶

`id`¶

A random UUID4 for your schema. You can generate a new UUID4 with python -c 'from uuid import uuid4; print(uuid4());'.

`name`¶

The Policy’s display name. It is shown to users if they have multiple Policies to choose from.

`quota_id`¶

The Quota’s ID this Policy grants access to.

`actor_requirements`¶

The requirements a user’s Helmholtz ID profile must fulfill in order to use this Policy. At this time the following user attributes are supported:

eduPersonEntitlement
eduPersonScopedAffiliation
eduPersonAssurance

Please refer to the Helmholtz ID documentation for more information on profile attributes.

The actor_requirements field’s semantics are as follows:

You must specify all fields supported by actor_requirements in your Policy (listed above)
The profile attributes are represented as lists of strings:
- ["value"] means you’re checking for the presence of value1 in the attribute list, but the actor’s list may include additional ones
- ["value1", "value2"] means both value1 and value2 must be present in the actor’s attribute’s list, but they may have additional ones in the list
- [] means the actor must have the field set with any list contents, but you ignore its contents
- null / undefined means you require the actor to not have the field or have it set to null

`target_entity`¶

This field describes which entities are valid owners of the resource managed using this Policy. Users choose the resource’s owner based on Policies available to them in the first step of the resource request process. Possible values are:

Set it to self for personal resources.
Set it to a specific group’s URN like urn:geant:helmholtz.de:group:research-group for allowing requesting for that group.
Use a URN wildcard ending with : like urn:geant:helmholtz.de:group:research-group: for allowing requesting for all subgroups below that group e.g. urn:geant:helmholtz.de:group:research-group:subgroup:project-a.

You can find a list of groups registered at Helmholtz ID here.

`json_schema`¶

The json_schema attribute contains a second JSON Schema used in addition to the ResourceType’s json_schema for validating a resource management action performed using the Policy. The resource must pass both the ResourceType’s and the Policy’s json_schema. This way, you can specify additional restrictions using Policies. If you do not want to add any additional restrictions, leave the list of properties empty. The properties listed in the Policy must be a subset of the ResourceType’s properties. A property’s data type must be the same in both json_schemas. The same restrictions that apply to ResourceTypes (e.g. nesting, available data types…) apply for Policies as well. Refer to the ResourceType’s documentation for specifics.

`time_seconds`¶

Not used at this time. We’re going to notify you if this changes. For now, you can set this to any positive integer value.

Annotated Example¶

The example below describes a policy for providing access to managing personal team resource on the chat service Mattermost. Click the icons in the code to reveal the annotations.

Policy.json
{
  "id": "a47fc9da-0a66-40cc-a643-bd9ddb3349a4",
  "name": "Mattermost Teams as Personal Resource", // (1)!
  "quota_id": "43762c80-aba4-4e2e-bd95-2107f1319240",
  "actor_requirements": {
      // Note this also specifies the authority at the end: #login.helmholtz.de
      "eduPersonEntitlement": ["urn:geant:helmholtz.de:group:Helmholtz-member#login.helmholtz.de"],
      "eduPersonScopedAffiliation": [],
      "eduPersonAssurance": ["https://refeds.org/assurance/ATP/ePA-1m"]
  },
  "target_entity": "self", // (2)!
  "json_schema": {
      "$schema": "https://json-schema.org/draft/2020-12/schema",
      "title": "MattermostPersonalTeamPolicy",
      "description": "Additional validation for this policy",
      "type": "object",
      "properties": {
        "team_name": {
              "description": "Your team's name must start with personal", // (3)!
              "type": "string",
              "minLength": 2,
              "maxLength": 64,
              "pattern": "^personal[a-zA-Z][a-zA-Z0-9-_ /\\(\\)\\[\\]]+$" // (4)!
        },
      }
  },
  "time_seconds": 9999 // (5)!
}

This is displayed to users if they have multiple Policies to choose from.
This is a Policy for personal resources.
This validation message gets displayed to the user in the resource form on Helmholtz Cloud.
Resources managed using this policy must also have their team name start with personal in addition to the format set by the ResourceType.
This is not used at this time and can be set to any positive integer value.
